100-90336

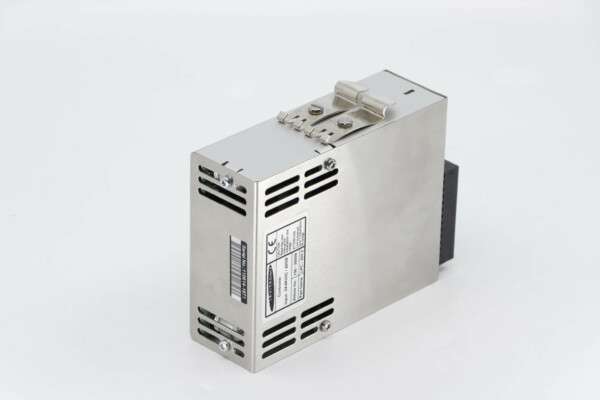

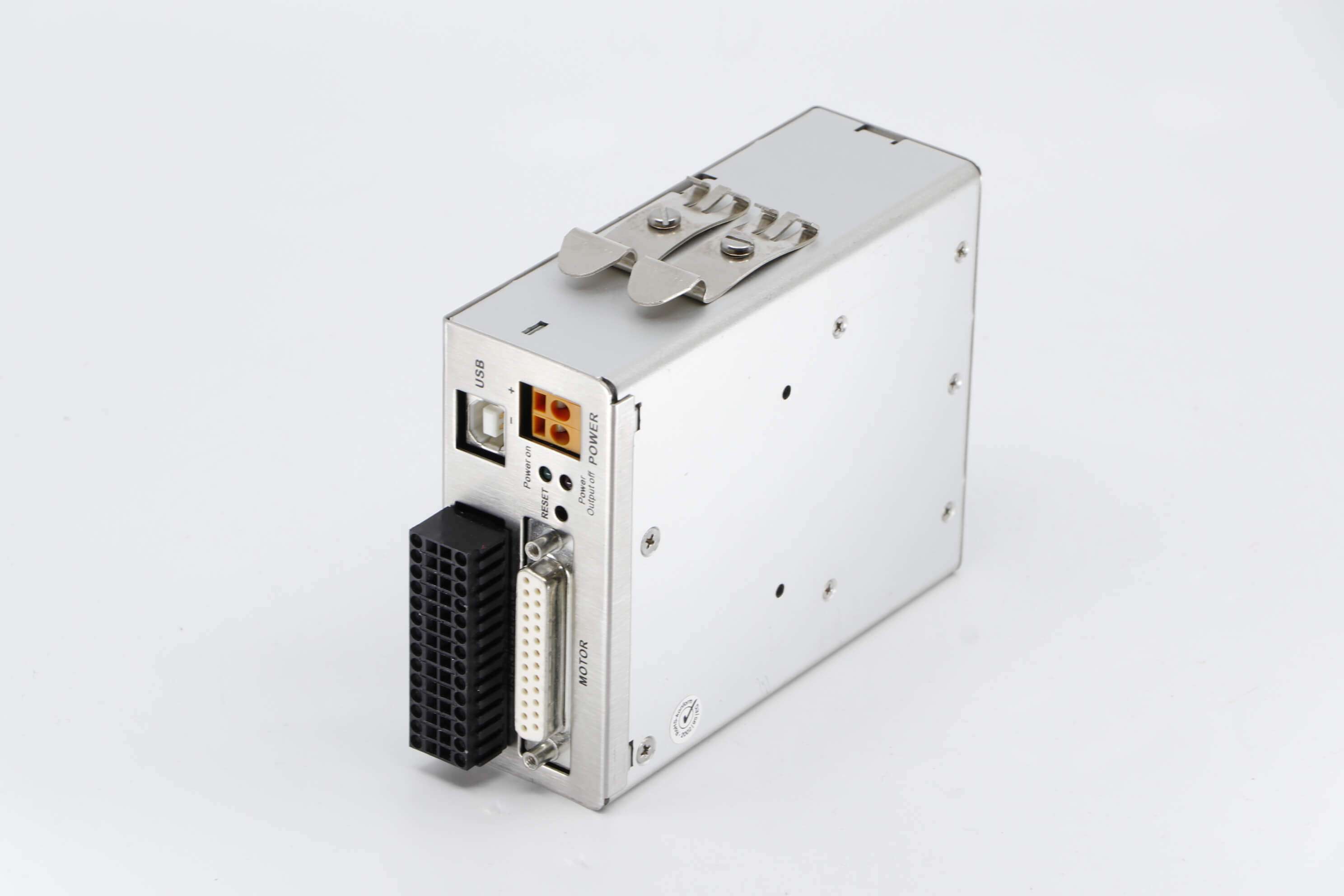

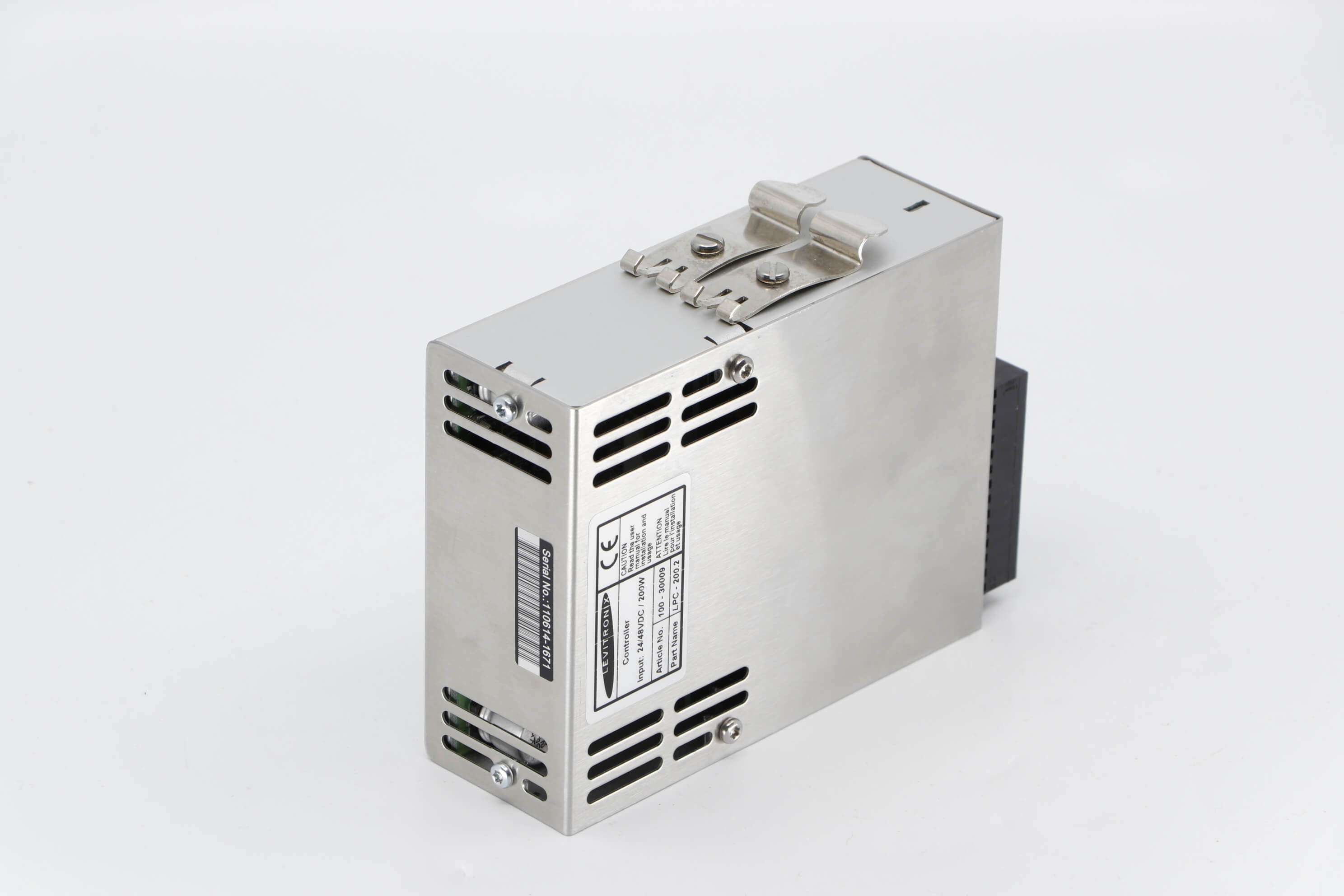

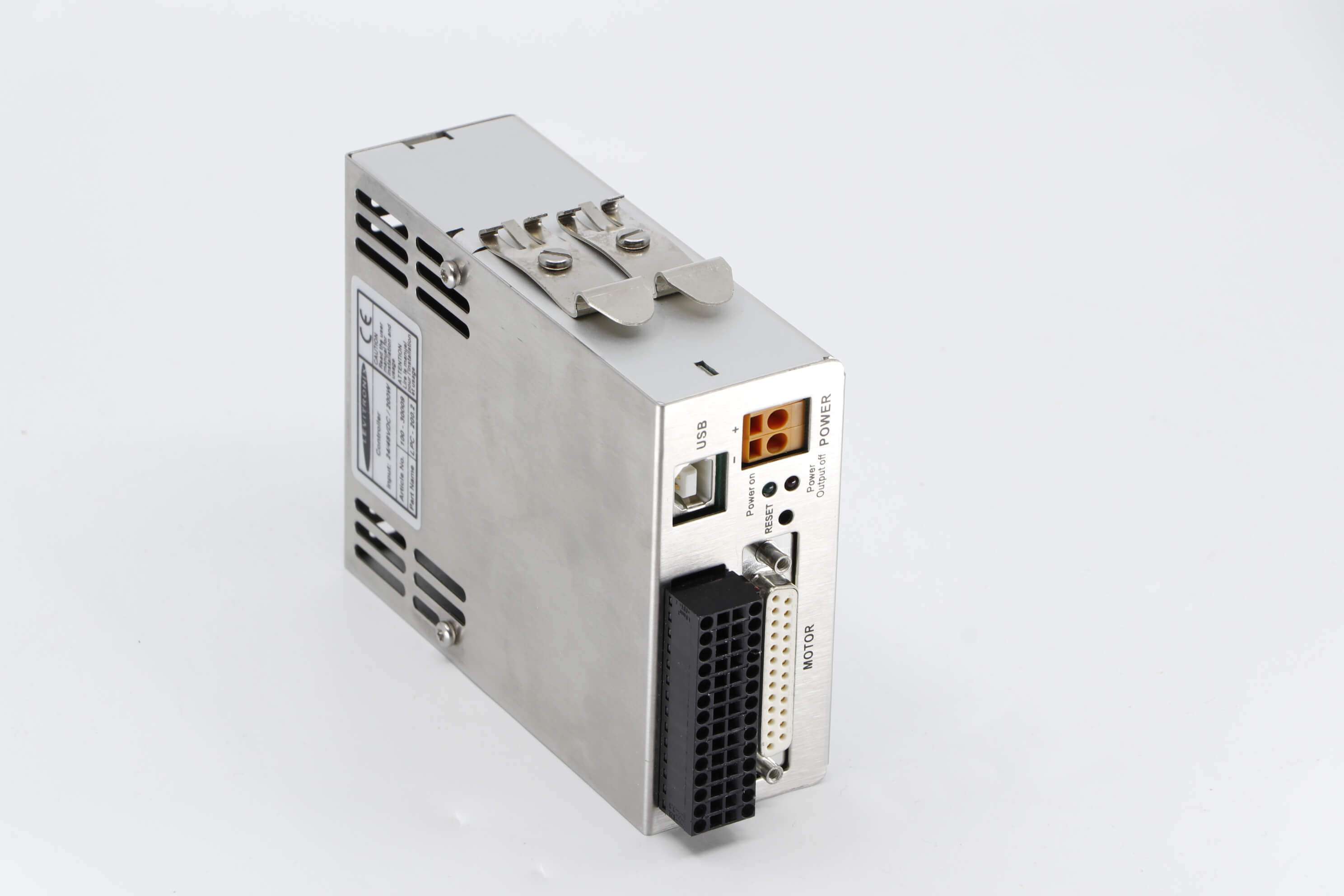

Controller LPC-200.2

Availability on request
In Favorites
Add to favorites
Service/Control Interface USB and PLC Interface
The Controller has an extended PLC interface. The PLC interace allows the speed to be set via an external signal, fasciliating precise closed-loop flow or pressure control when either a flow or pressure sensor is integrated into the system. A computer can be connected to allow commuication with Levitronix® Service Software. Hence parameterization, firmware updates and failure analysis are possible.

Specifications

Power 200 W
Voltage 24 - 48 VDC
PLC Interface 2 analog outputs 0-5 V
4 analog inputs 2 with 4-20 mA, 2 with 0-10 V
4 digital inputs 0-24 V (optocoupler)
4 digital outputs 0-24 V (relays)
Service/Control Interface USB and PLC Interface
Spare Part Type Controller
Pump Size 200
Max. Ambient Temperature (Operating/Storage) 40°C /80°C
Dimensions (mm) See technical drawing
Weight (kg) 0.5
Show more specifications
Show less specifications

Complementary Products

Compatible with

100-90192

Pump System BPS-200.2

Pump System BPS-200.2

Max. Flow (l/min)
21
Max. diff. Pressure (bar)
2.6
Max. Viscosity
50 cP
Max. Liquid Temperature
90°C / 194°F
Service/Control Interface
USB and PLC Interface
100-90194

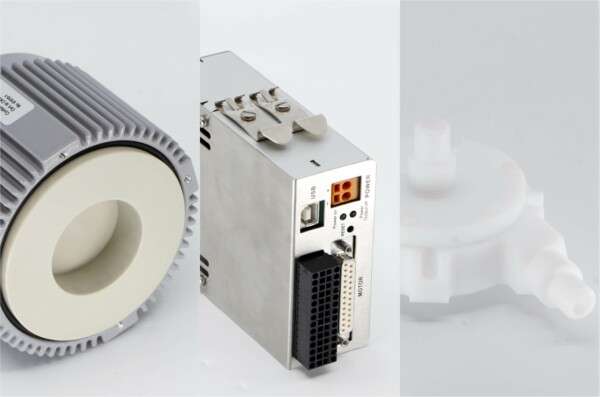

Pump System BPS-200.4

Pump System BPS-200.4

Max. Flow (l/min)
21
Max. diff. Pressure (bar)
2.6
Max. Viscosity
50 cP
Max. Liquid Temperature
90°C / 194°F
Service/Control Interface
USB and PLC Interface
100-90386

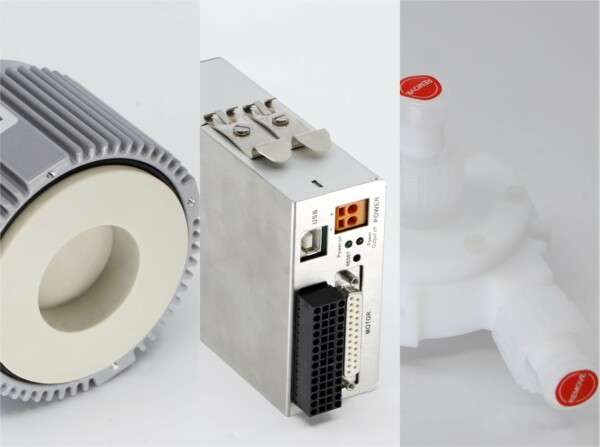

Pump System BPS-200.7

Pump System BPS-200.7

Max. Flow (l/min)
21
Max. diff. Pressure (bar)
2.6
Max. Viscosity
50 cP
Max. Liquid Temperature
90°C / 194°F
Service/Control Interface
USB and PLC Interface
