0
100-30098

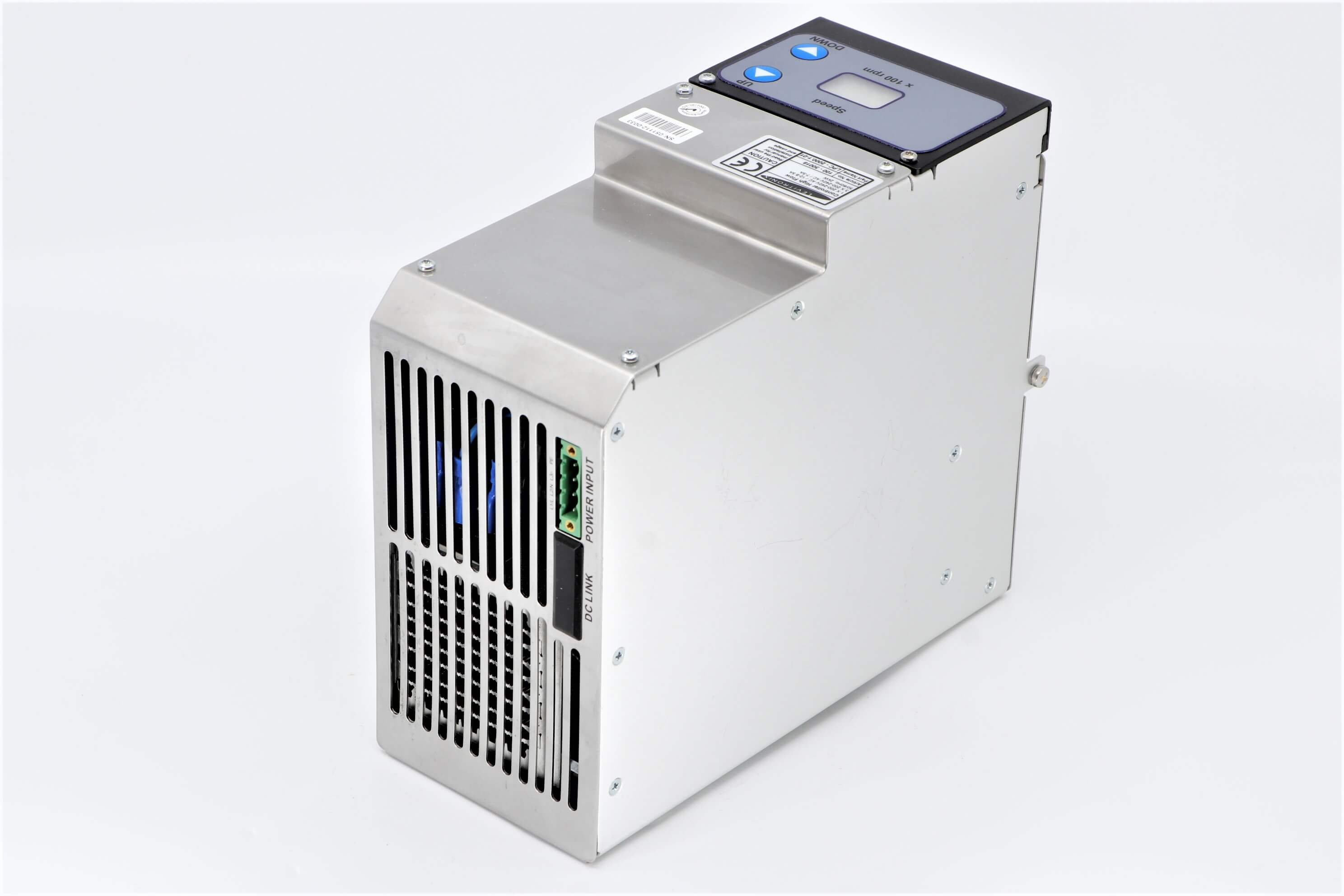

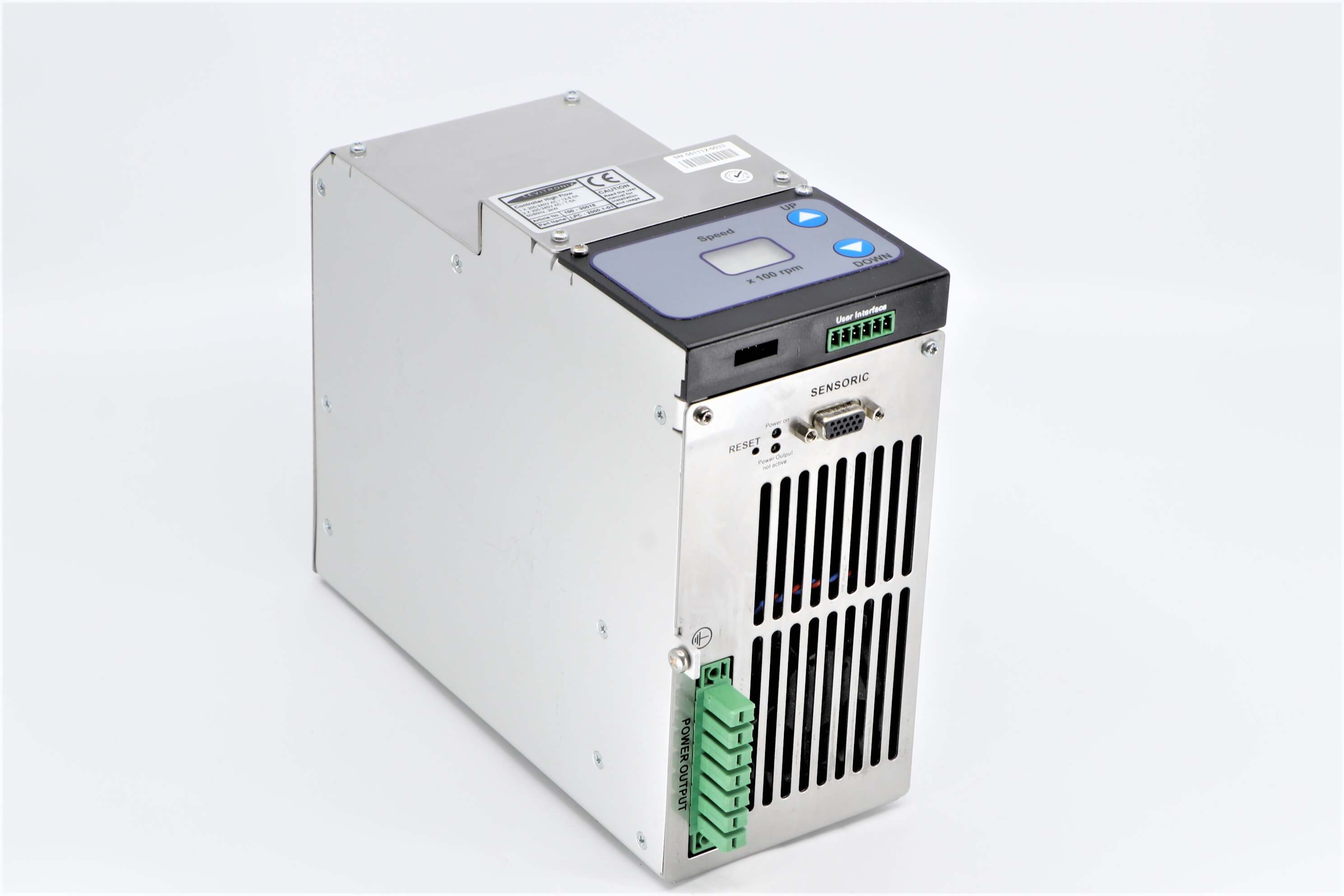

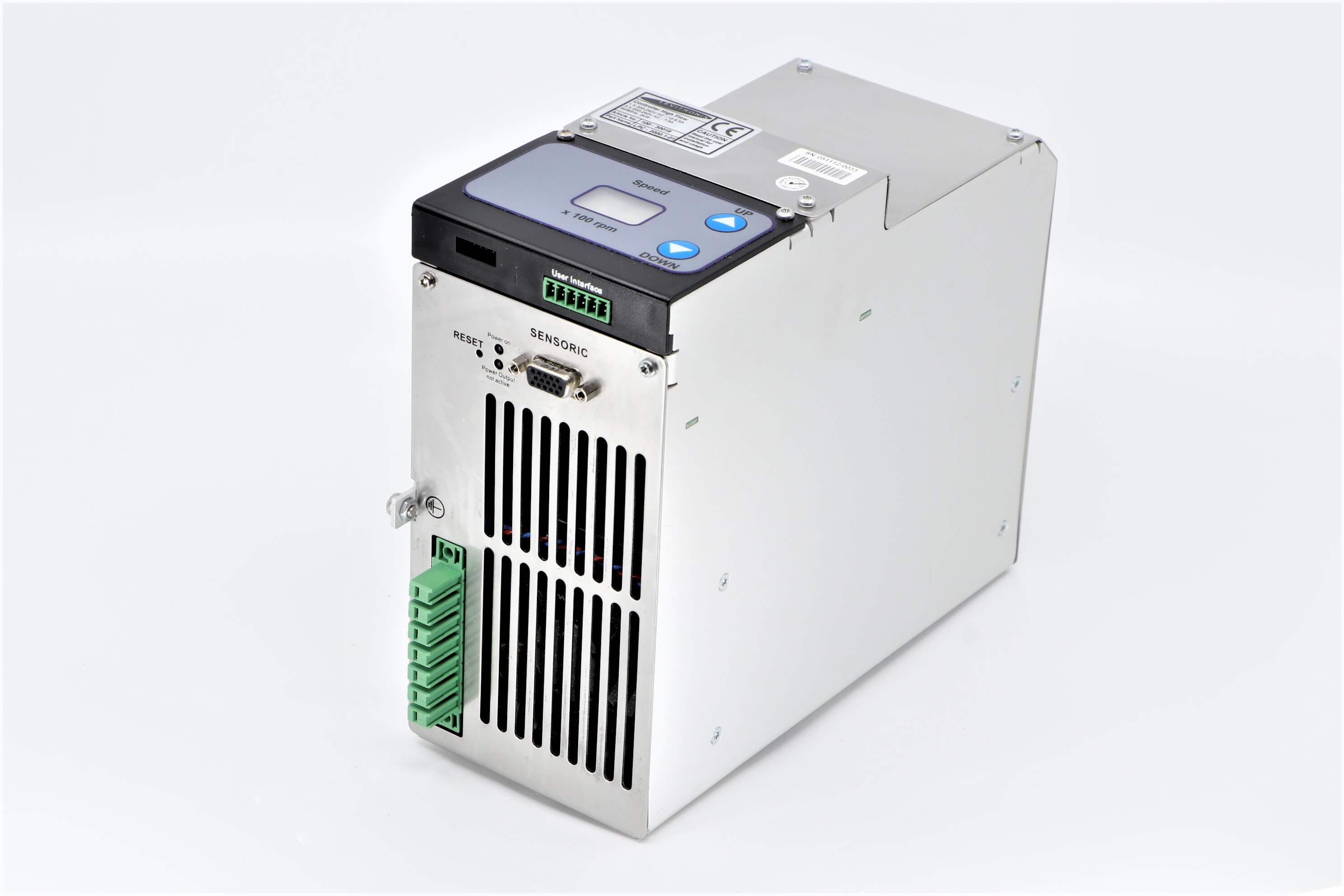

Controller LPC-2000.1-12 (High Pressure)

Availability on request
In Favorites
Add to favorites
Service/Control Interface Button Control Mode
The Controller has an integrated user panel that allows the operator to set the speed manually. The speed is automatically stored in the internal EEPROM of the controller. As an option, the speed can also be set with an analog signal.

Specifications

Power 2 000 W
Voltage 200-240 VAC
PLC Interface 1 analog input ("Speed") 4-20 mA
1 digital input ("Enable") 0-24 V (optocoupler)
1 digital output ("Status") 0-24 V (relays)
Service/Control Interface Button Control Mode
Spare Part Type Controller
Pump Size 2000
Max. Ambient Temperature (Operating/Storage) 40°C /80°C
Dimensions (mm) See technical drawing
Weight (kg) 2.9
Show more specifications
Show less specifications

Complementary Products

Compatible with

100-91471

Pump System BPS-2000.58 (Stand-Alone, ATEX/IECEx, High Pressure)

Pump System BPS-2000.58 (Stand-Alone, ATEX/IECEx, High Pressure)

Max. Flow (l/min)
80
Max. diff. Pressure (bar)
6.2
Max. Viscosity
20 cP
Max. Liquid Temperature
90°C / 194°F
Service/Control Interface
Button Control Mode
100-91469

Pump System BPS-2000.56 (Stand-Alone, High Pressure, HazLoc)

Pump System BPS-2000.56 (Stand-Alone, High Pressure, HazLoc)

Max. Flow (l/min)
80
Max. diff. Pressure (bar)
6.2
Max. Viscosity
20 cP
Max. Liquid Temperature
90°C / 194°F
Service/Control Interface
Button Control Mode
