100-30099

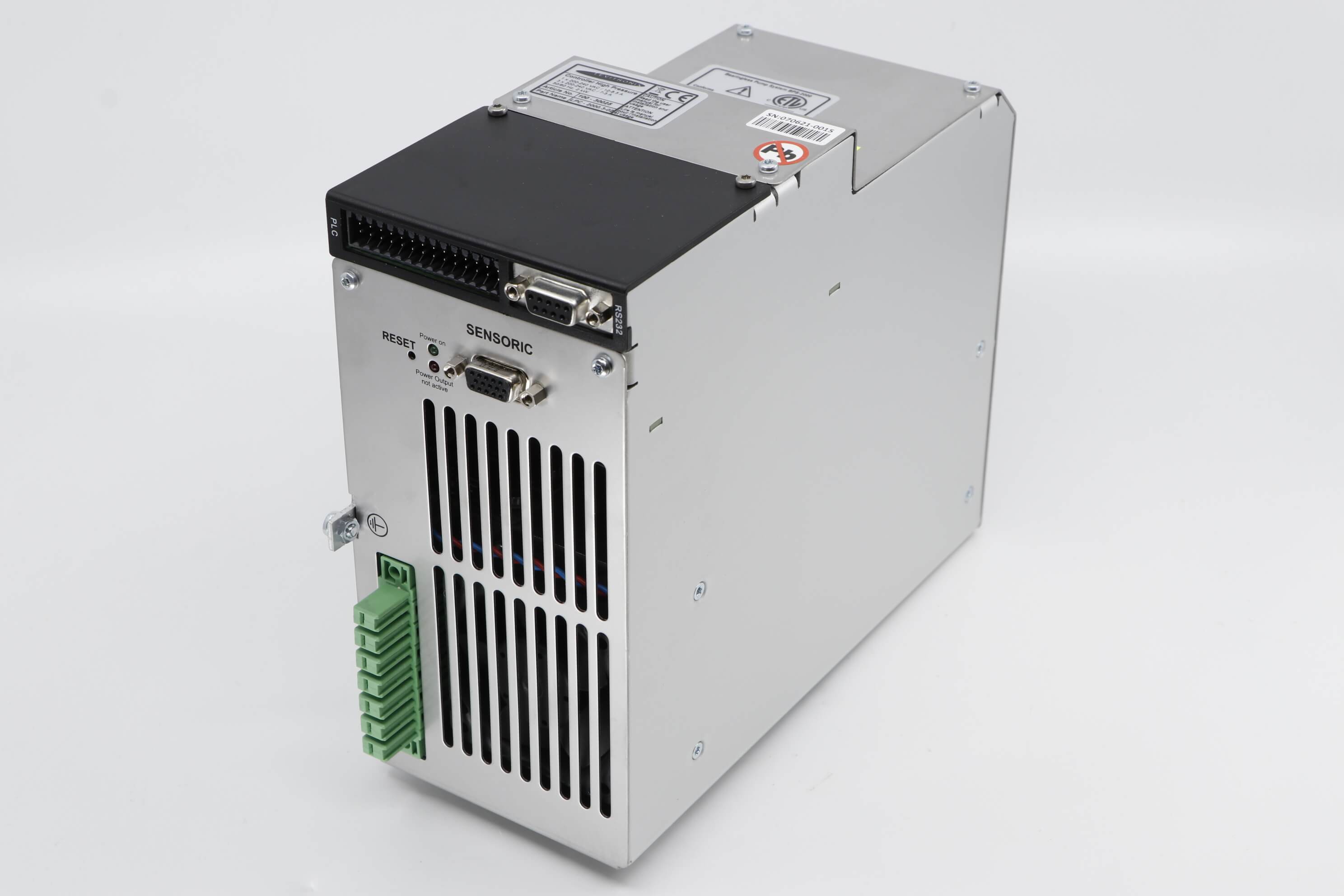

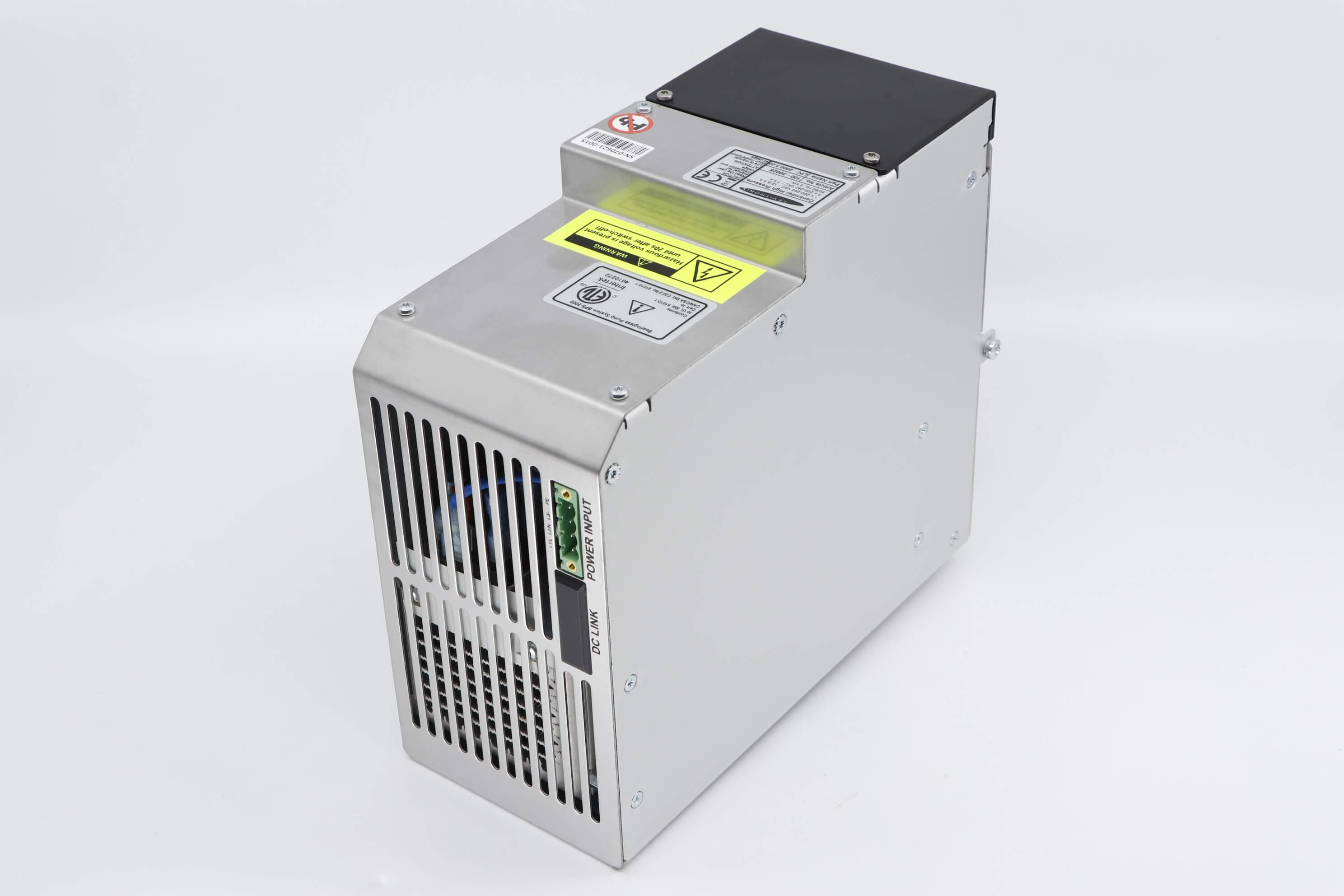

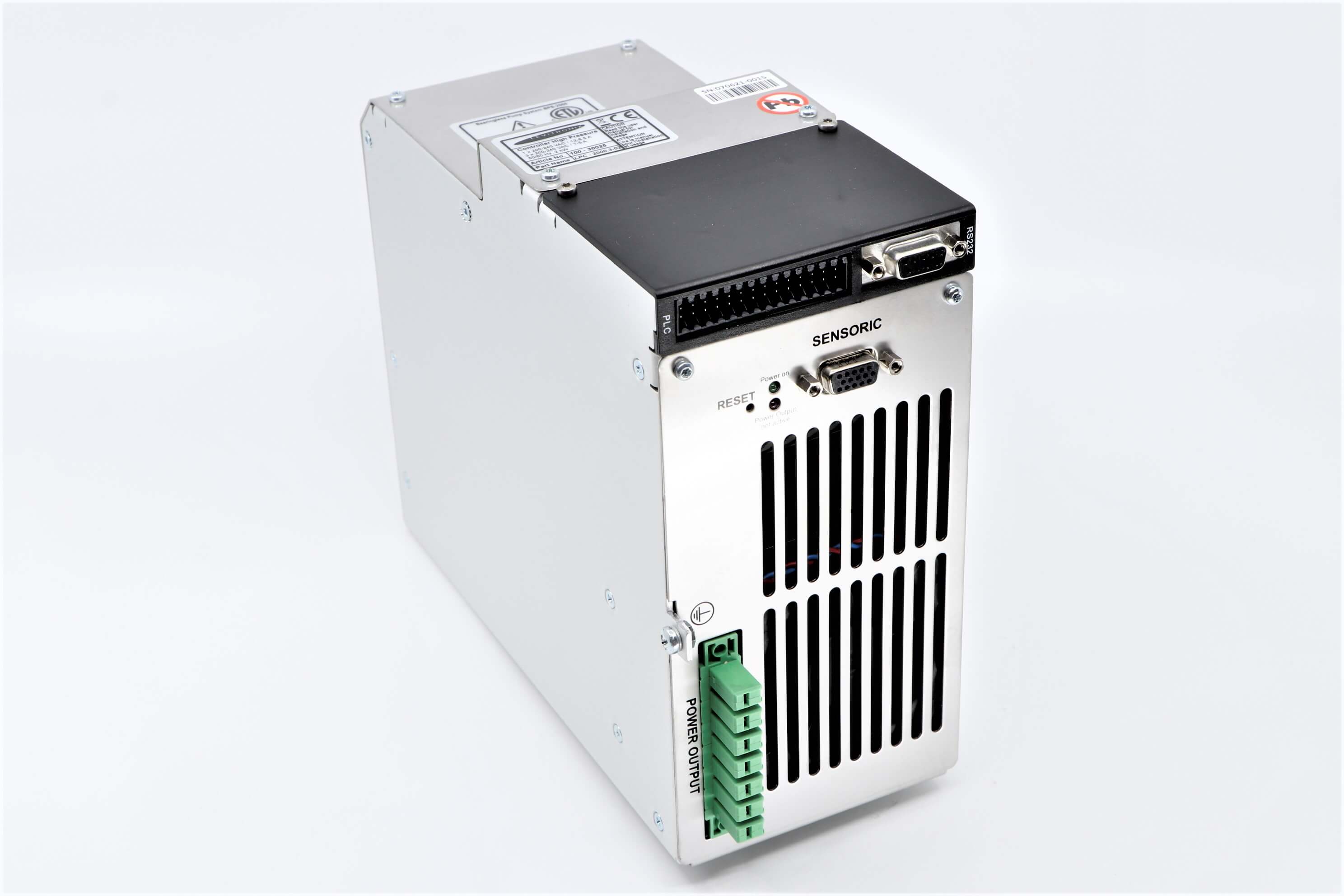

Controller LPC-2000.3-12 (High Pressure)

Availability on request

In Favorites

Add to favorites

Service/Control Interface RS232 and PLC Interface

The Controller has an extended PLC interface. The PLC interace allows the speed to be set via an external signal, fasciliating precise closed-loop flow or pressure control when either a flow or pressure sensor is integrated into the system. A computer can be connected to allow commuication with Levitronix® Service Software. Hence parameterization, firmware updates and failure analysis are possible.

Specifications

Power	2 000 W
Voltage	200-240 VAC
PLC Interface	2 analog outputs 0-5 V 4 analog inputs 2 with 4-20 mA, 2 with 0-10 V 4 digital inputs 0-24 V (optocoupler) 4 digital outputs 0-24 V (relays)
Service/Control Interface	RS232 and PLC Interface

Spare Part Type	Controller
Pump Size	2000
Max. Ambient Temperature (Operating/Storage)	40°C /80°C
Dimensions (mm)	See technical drawing
Weight (kg)	2.9

Show more specifications

Show less specifications
