100-30089

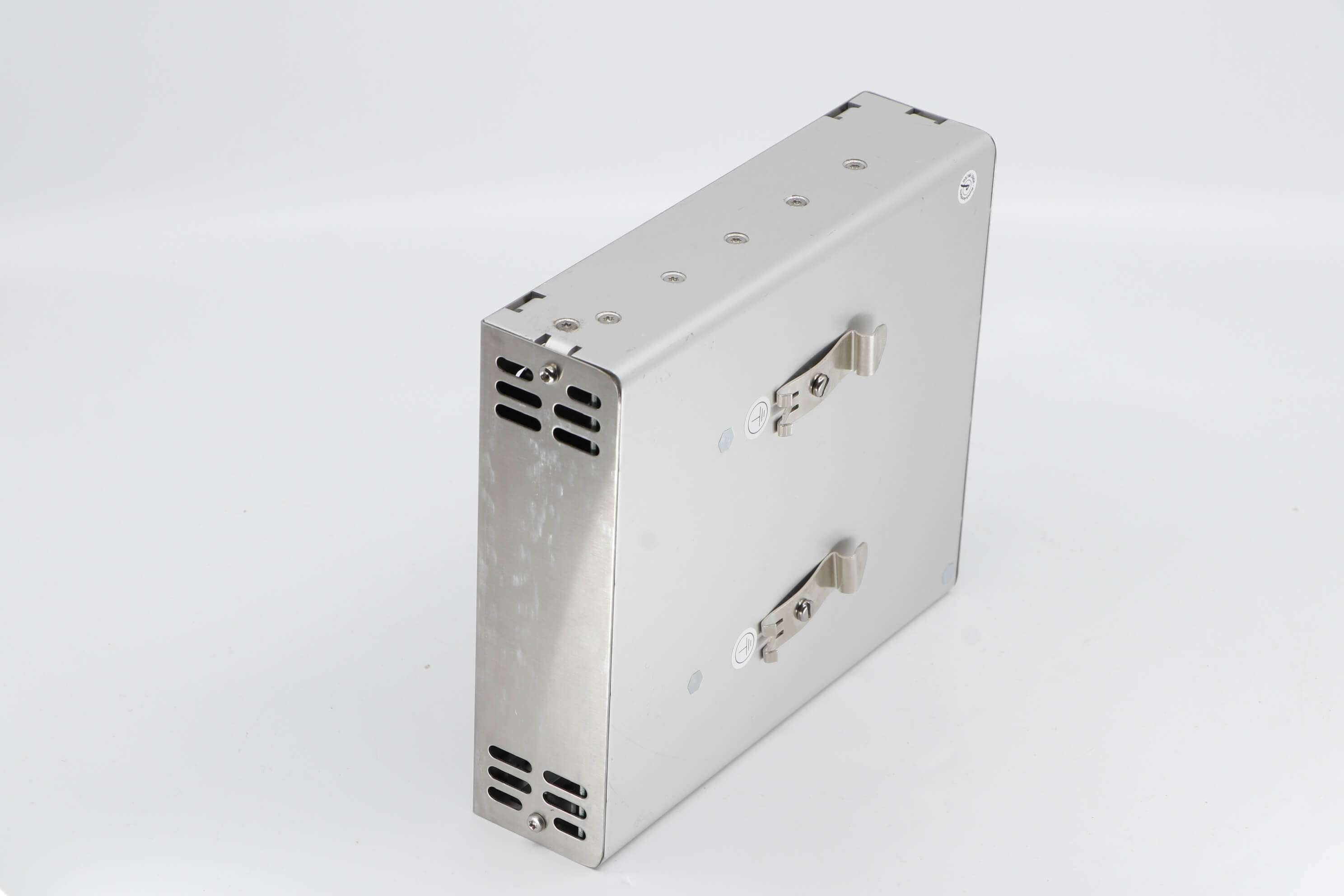

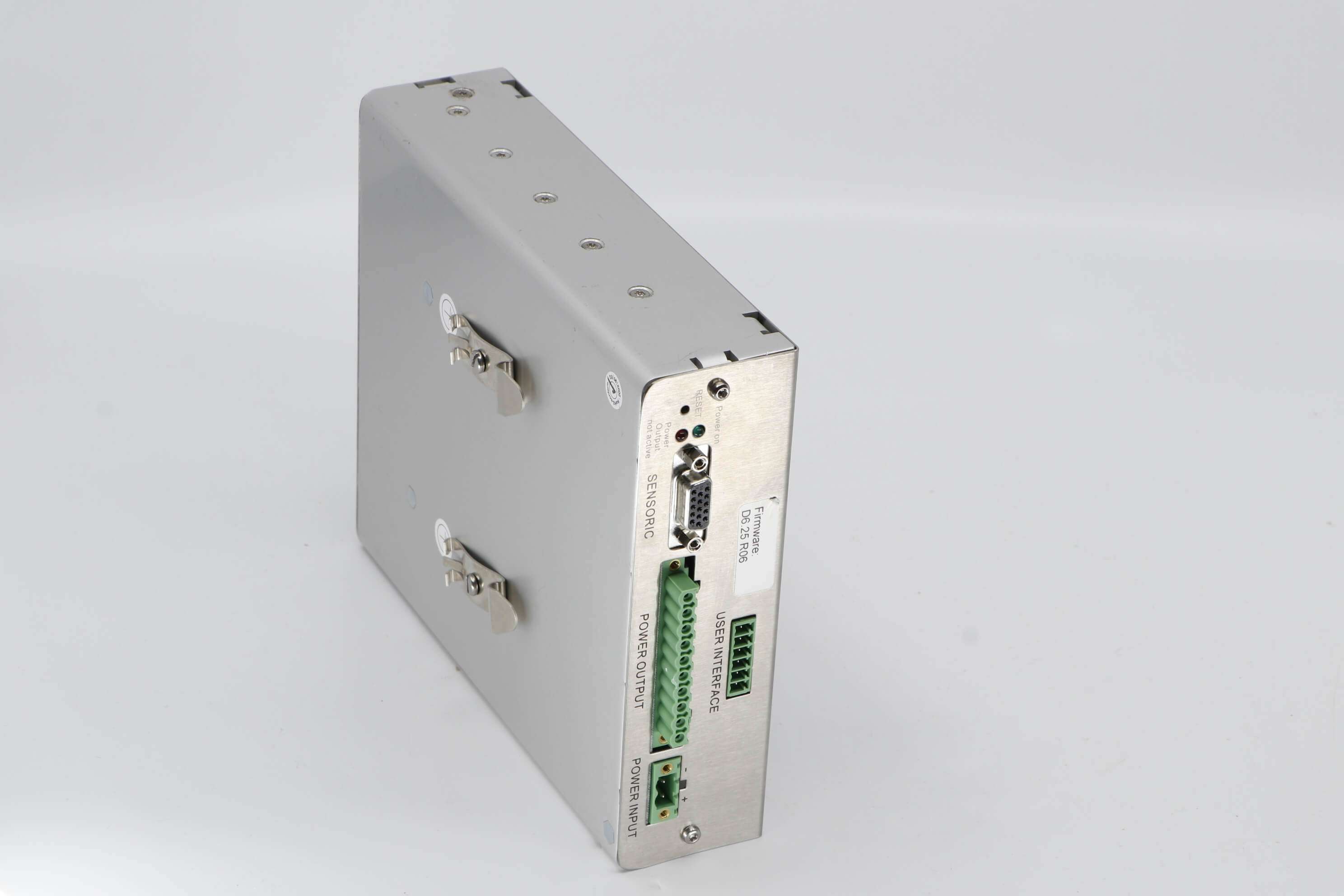

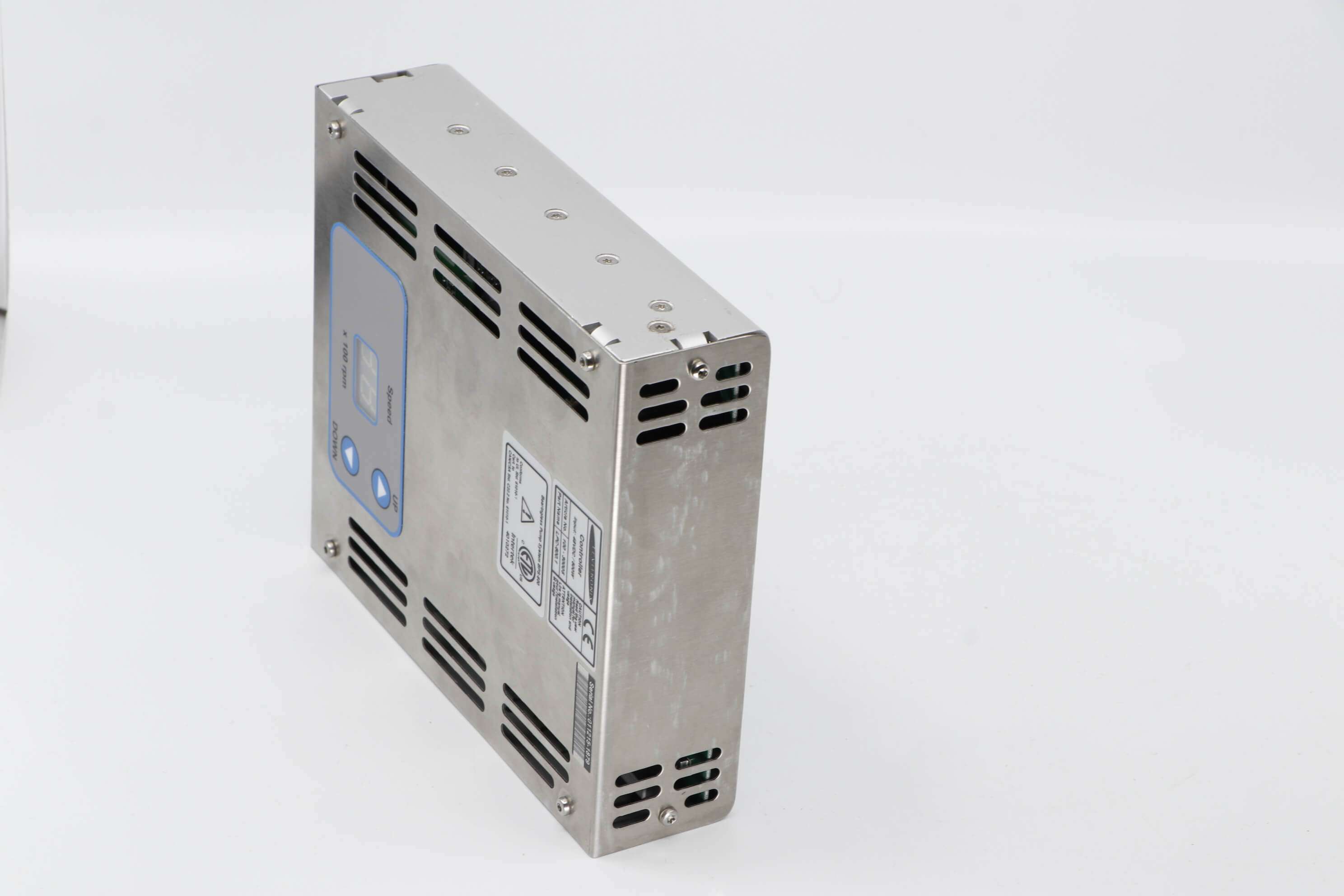

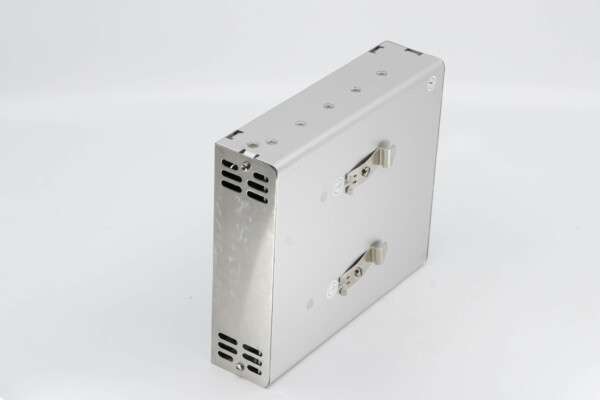

Controller LPC-600.1-07

Availability on request
In Favorites
Add to favorites
Service/Control Interface Button Control Mode

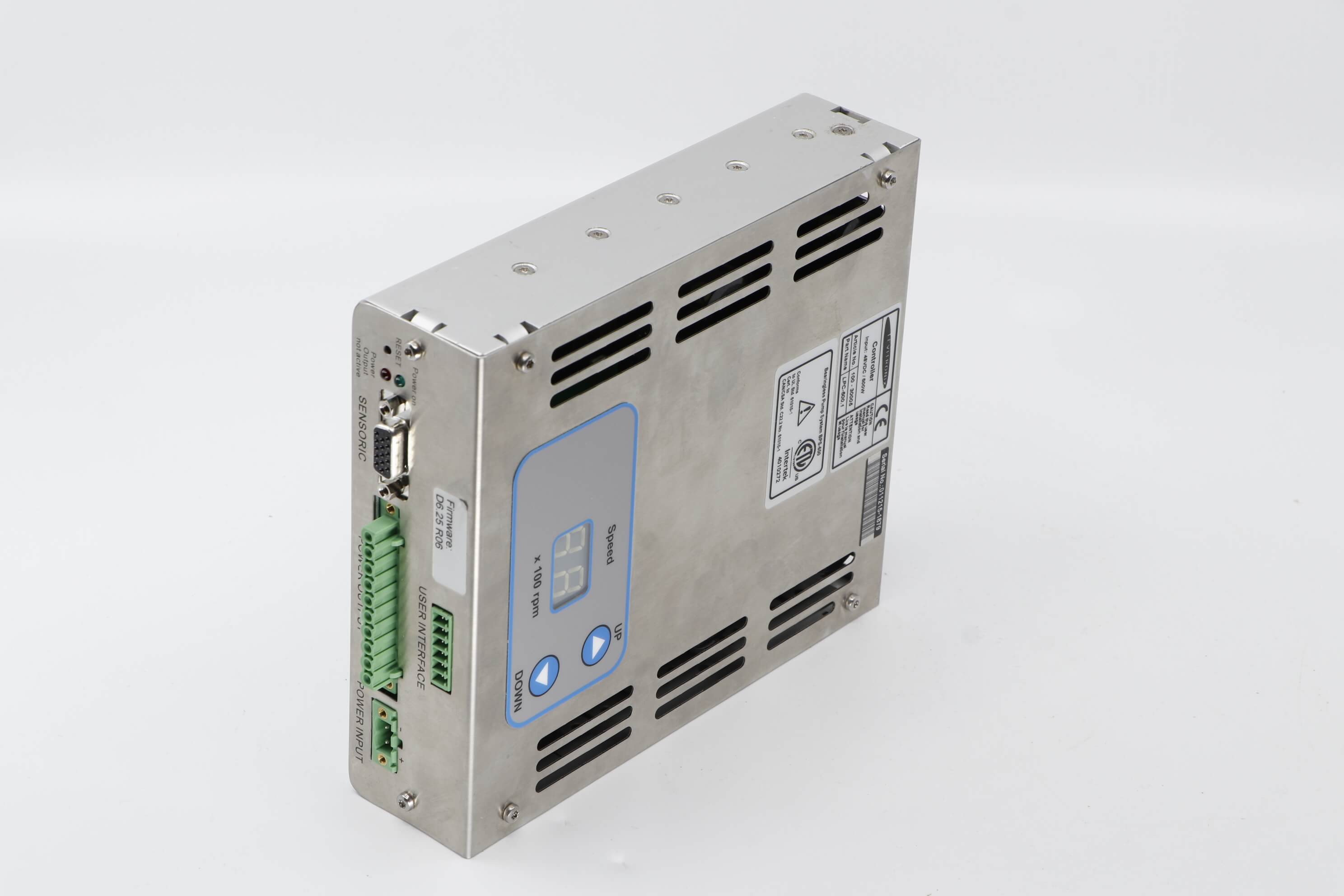

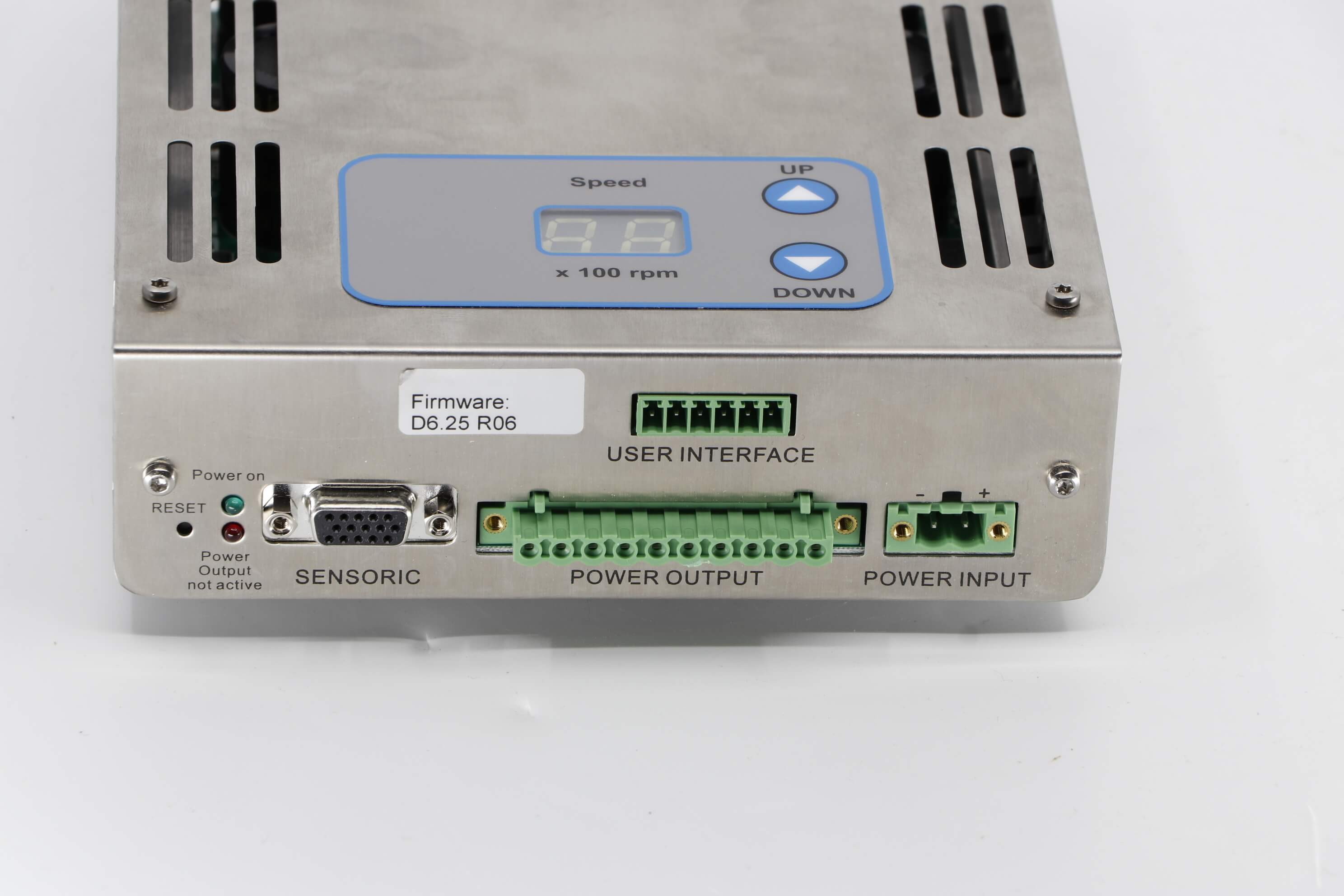

The Controller has an integrated user panel that allows the operator to set the speed manually. The speed is automatically stored in the internal EEPROM of the controller. As an option, the speed can also be set with an analog signal.

Specifications

Power 600 W
Voltage 48 VDC
PLC Interface 1 analog input ("Speed") 4-20 mA
1 digital input ("Enable") 0-24 V (optocoupler)
1 digital output ("Status") 0-24 V (relays)
Service/Control Interface Button Control Mode
Spare Part Type Controller
Pump Size 600
Max. Ambient Temperature (Operating/Storage) 40°C /80°C
Dimensions (mm) See technical drawing
Weight (kg) 1.05
Show more specifications
Show less specifications

Complementary Products

Compatible with

100-91322

Pump System BPS-600.51 (Stand-Alone, ATEX/IECEx)

Pump System BPS-600.51 (Stand-Alone, ATEX/IECEx)

Max. Flow (l/min)
75
Max. diff. Pressure (bar)
3.2
Max. Viscosity
30 cP
Max. Liquid Temperature
90°C / 194°F
Service/Control Interface
Button Control Mode
